Noodle Packaging Machine
Hfirst Noodle packaging machine has 20 years of research and development and manufacturing experience in China. Applicable to bulk strip-shaped materials such as: noodle, Spaghetti automatic weighing and packaging. Fully automatic and high-precision weighing and high-speed packaging, controlled by a highly intelligent system, with strong stability and stainless steel material meeting food grade standards. We have CE and ISO9001 certifications, over 30 national technology patents, and have led the development of Chinese national technical standards for noodle packaging.
- Hfirst
- China
- 20 days
Details

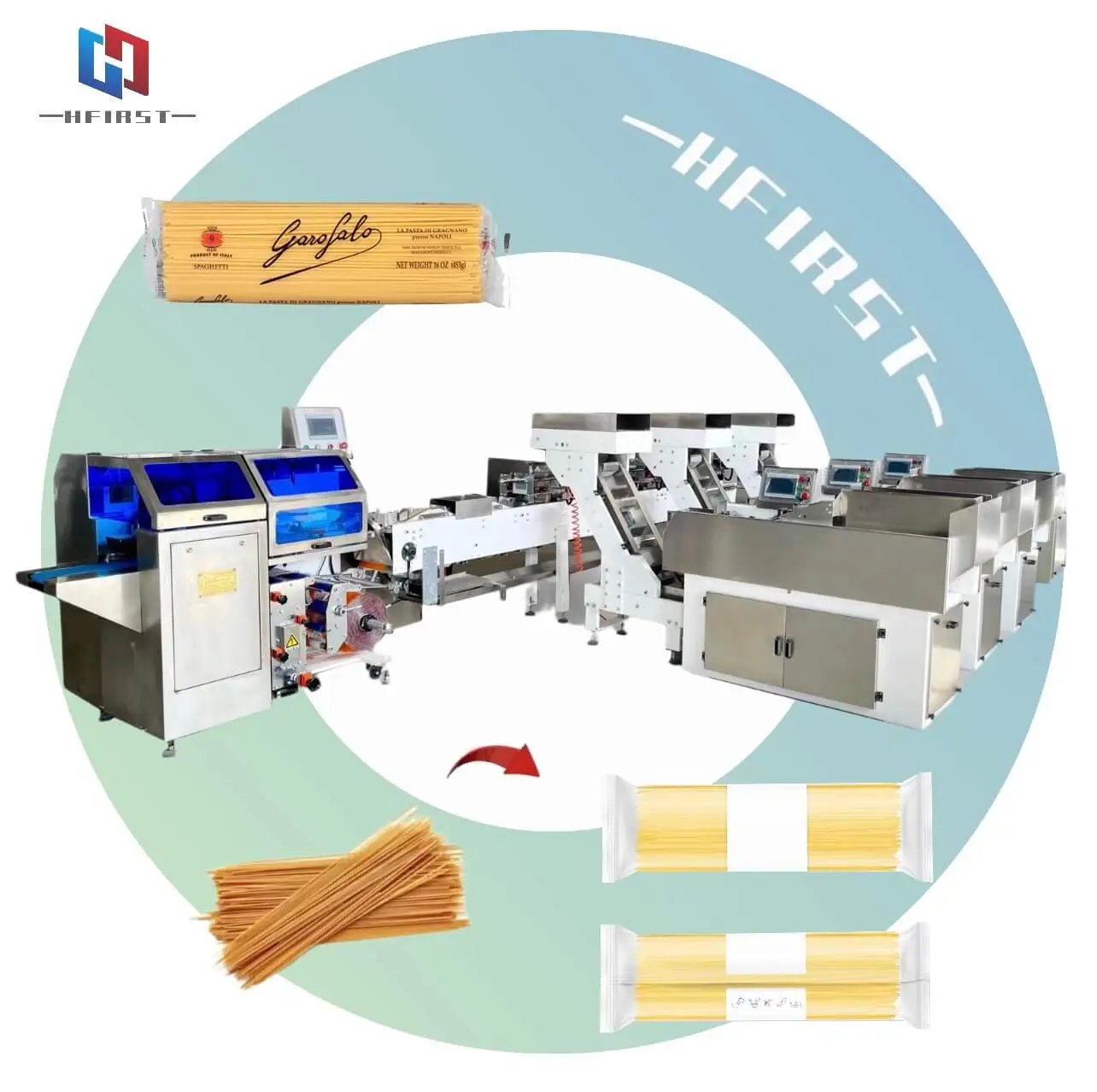

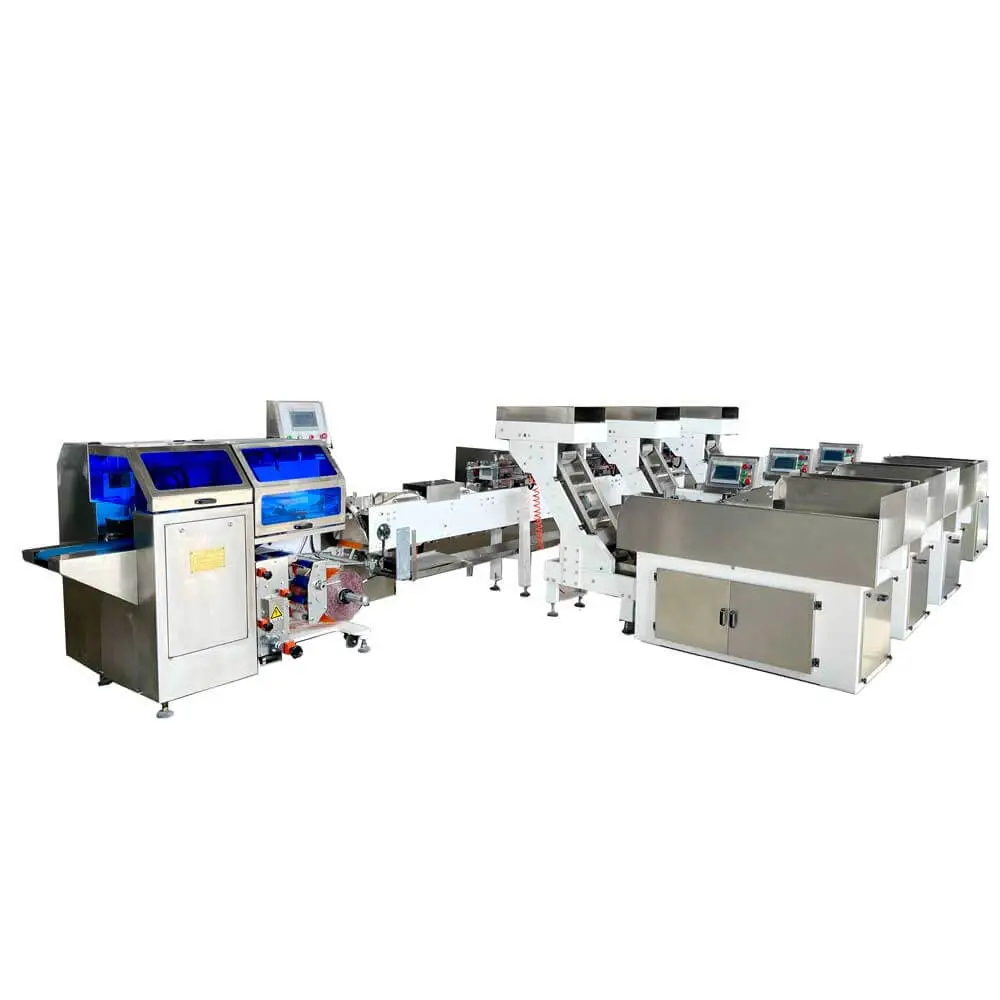

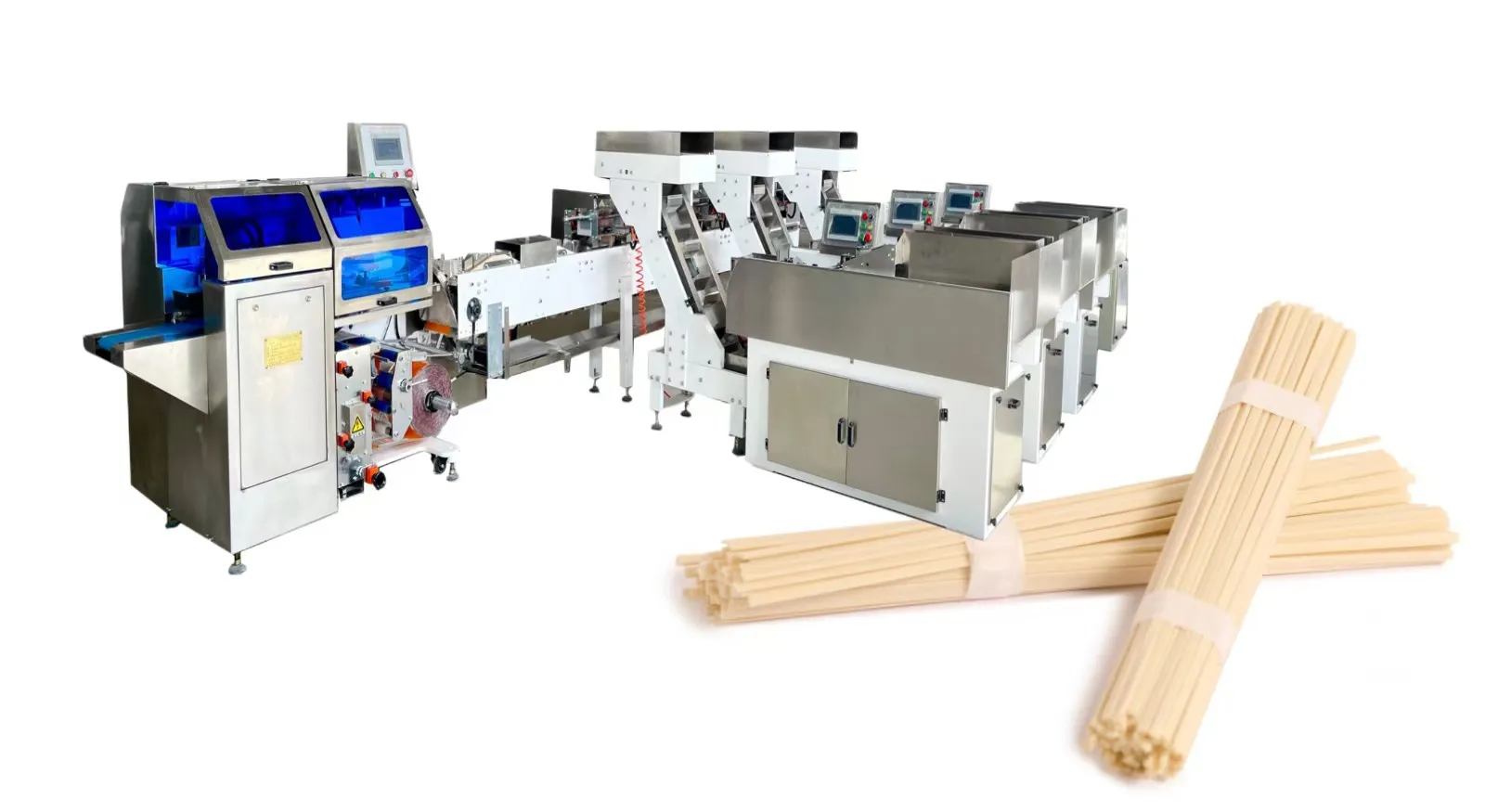

Fully automatic dry noodles packaging machine
1. Intelligent, digital servo motor control system for noodle packing machine.
2. Double driving vertical sealing, automatic opening and closing structure.
3. Tansverse sealing and cutting center can with packing height adjustment.
4. The feeding position in operation can be adjusted at any time.
5. LCD display, can be set, display operating status, parameters and fault.
6. Part of the conveyor has the advantages of compact structure , adopts the material box structure , solves, the conventional scraper structure need t be replaced frequently and appearance defects.
7. Our noodle packaging machine has a unique automatic flush device, ensure that the qualified rate of the finished packaging vermicelli.
8. Color code tracking point automatic positioning, automatic with the standard; packaging bags, automatic measurement of memory.
9. With air defense, anti cutting function, saves the packaging cost.
10. Automatic weighing machine, host core system and stainless steel conveying line are exclusive patents.

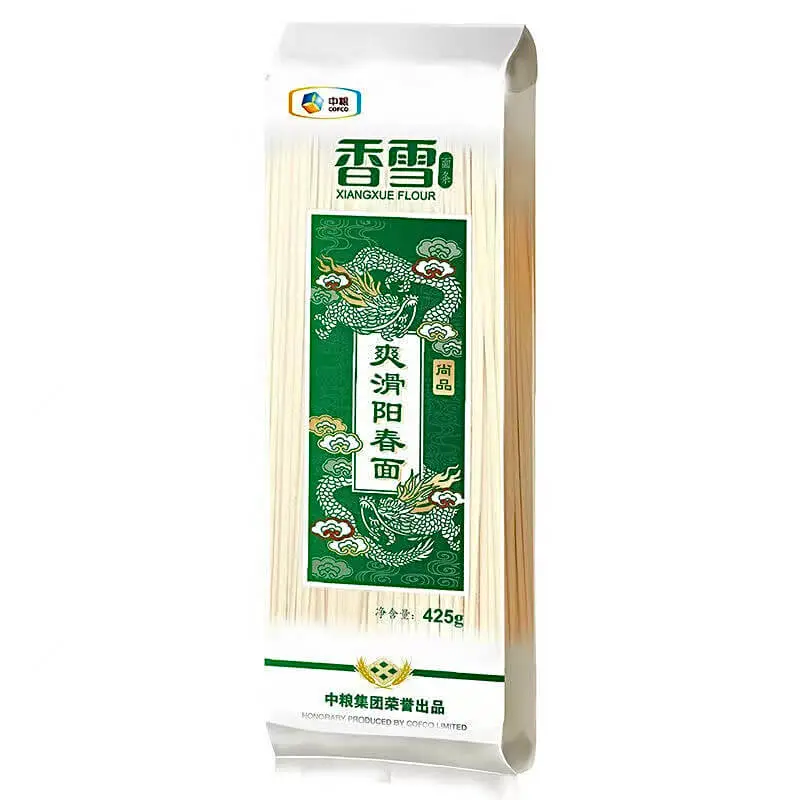

11. Our noodle packaging machines are exported to the United States, Italy, Africa and other countries and are well received. It is a multi-year noodle packaging machine supplier for China's well-known enterprise COFCO group, the listed company Chen Keming Food Co., Ltd., the well-known brand golden dragon fish and the white elephant group.
According to your needs, we will provide you with fully automatic intelligent Noodle packaging production line solution.

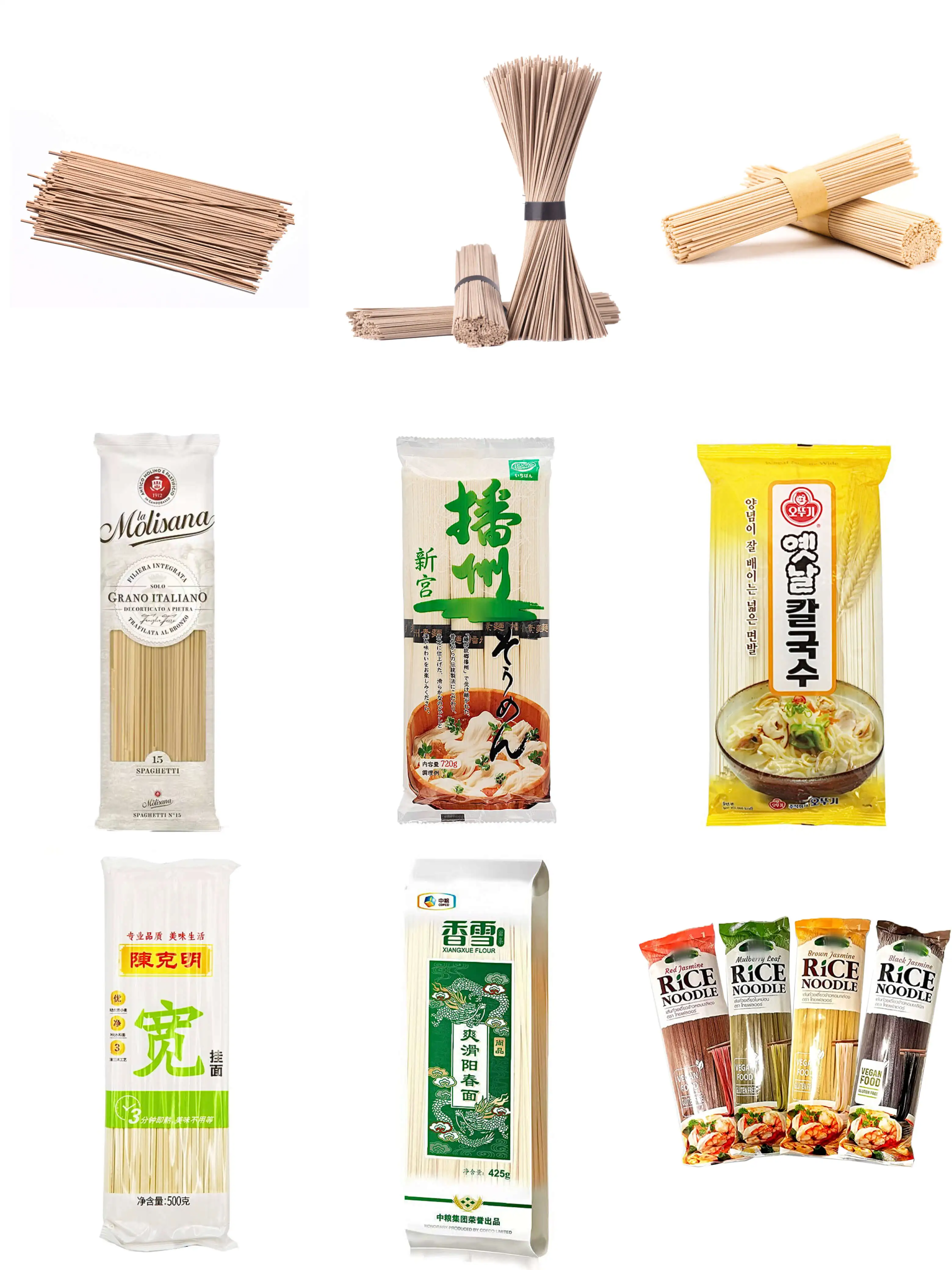

| Package object: | noodles and strip material |
| Package length Mea: | 180-260mm(100g-500g);220-260mm(500g-1000g); |
| 220-260mm(1.5kg - 2.5kg) | |
| Packaging speed: | 10-65 bags/min |
| Surement range: | 10-65 bags/min |
| Power supply: | AC 220v/ 50-60 Hz/12 kw |
Main technical parameters
1. | Measurement range | 100g-500g / 300g-1000g |
2. |
Packing speed Single set | HWBX-I:15-20bags/min |
HWBX-IV:60-70bags/min | ||
3. | Power supply | AC 220V 50HZ |
4. | Total gas consumption of the equipment | 0.05m³/min/cover |
5. |
Power: | HWBX-I:5kw |
HWBX-IV:7kw |
Electrical configuration of main equipment
Main electrical configuration | ||||
NO. | name | model | brand |
|
1. | PLC system | X40DT-D | Omron (Japan) |
Packaging Machine |
2. | Touch-screen | TK6070IP | Weilun (Taiwan) | |
3. | Photoelectric sensor | PH-Q23-A1-020 | Kerui | |
4. | Proximity switch | M1204N-03U2 | Bideke | |
5. | Solid-state relay | DD4825/DA4840 | Meel (Shanghai) | |
6. | Switch on the power supply | NES-50-24V | Ming Wei (Taiwan) | |
7. | Servo system | EMJ –08/PROWET-E-08A | Eston | |
8. | Color code photoelectricity | QS18VN6CV15/LX- 111 | Bonner(USA)/ Panasonic (Japan) | |
9. | Photoelectric sensor | PM-K45 | Panasonic (Japan) | |
1. | PLC system | XC3-24T-E | Xinjie |
Weighing Machine |
2. | Touch-screen | TG-765-MT | Xinjie | |
3. | Weighing Module | TR700-FT | Zhuhai Changlu | |
4. | Switch on the power supply |
100/ 150-24V |
Ming Wei (Taiwan) | |
5. | Rotary Solenoids | MX 7235MQ30 | Qingdao Seahawk | |
6. | weight sensor | L6N-C3 | AVIC Survey | |
7. | Main electric motor |
| ZD or Miley | |
8. | SS-22 | ZD | ||
9. | Solid-state relay | DA4825/DD2225 | Meel (Shanghai) | |
10. | Intermediate relay | DCR-2C-T | Honeywell (USA) | |
11. | Circuit breaker |
| zhengtai | |
12. | button | SAY7-B-G/Y/R | Shanghai Senao | |
1. | Main electric motor |
| ZD or Miley |
Lifting Machine |
2. | Solid-state relay | DD4825 | Meel (Shanghai) | |
Our noodle packaging machine is a patented product in China, assisting China's General Administration of Quality Supervision, Inspection and Quarantine and China's National Standardization Administration to jointly draft national standardization specifications for noodle packaging.
patent certificate
